Model No: PTFE

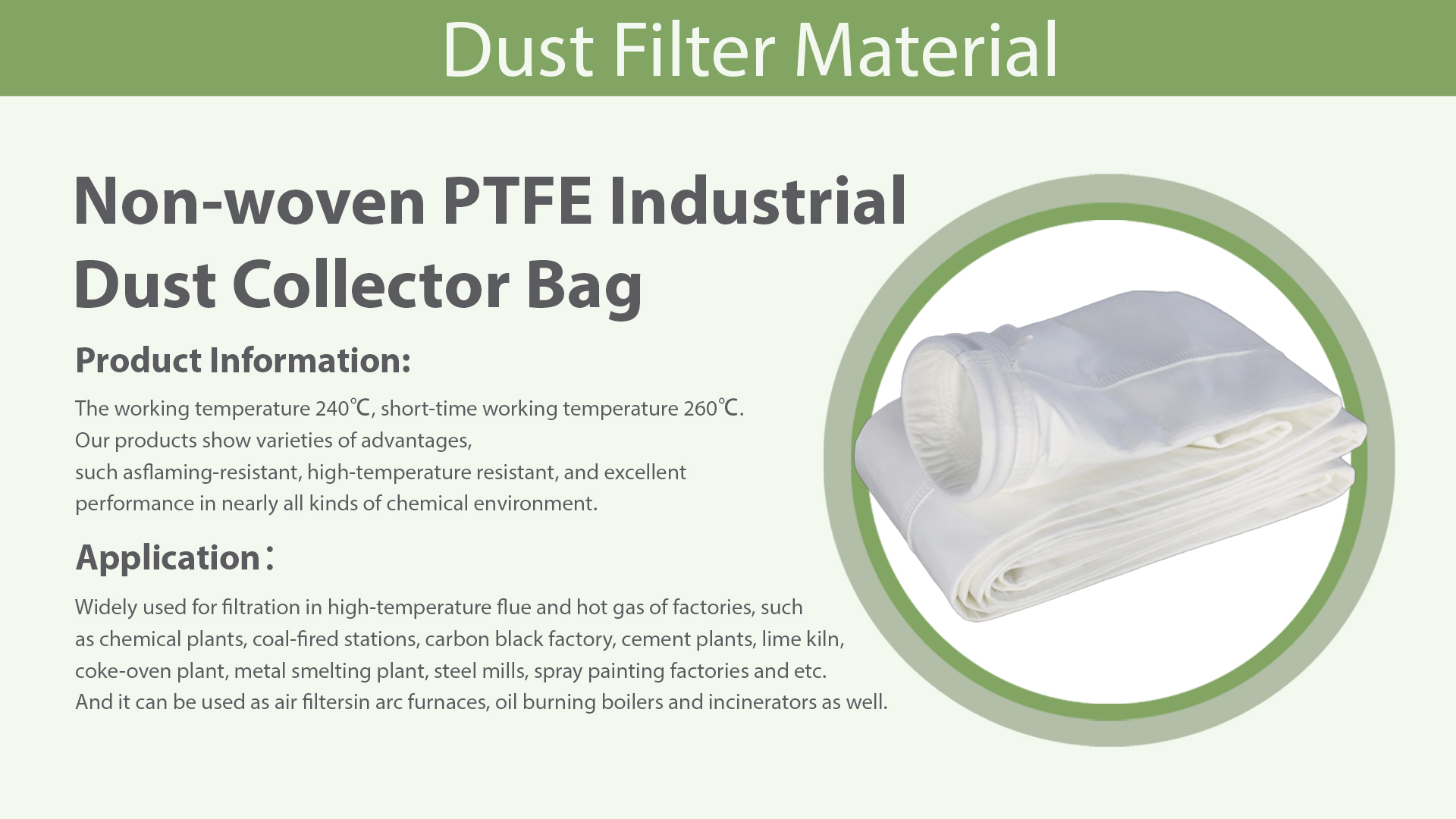

PTFE Needle Felt
The working temperature 240℃, short-time working temperature 260℃.Our products show varieties of advantages, such as
flaming-resistant, high-temperature resistant, and excellent performance in nearly all kinds of chemical environment.
flaming-resistant, high-temperature resistant, and excellent performance in nearly all kinds of chemical environment.
Quantity :
Subscribe to our Newsletter
The working temperature 240℃, short-time working temperature 260℃.Our products show varieties of advantages, such as
flaming-resistant, high-temperature resistant, and excellent performance in nearly all kinds of chemical environment.
flaming-resistant, high-temperature resistant, and excellent performance in nearly all kinds of chemical environment.
Working Condition | Material | Weight g/m² | Thickness （mm） | Temperature Resistance (°C) | Air permeability （L/dm2*min） | |
Continues | Instant | |||||
Room Temperature 0~120℃ | Polyester | 400-600 | 1.5-2.1 | 130 | 150 | 140-200 |
Polyester anti-static | 400-600 | 1.5-2.1 | 130 | 150 | 140-200 | |
Polyester water & oil proof | 400-600 | 1.5-2.1 | 130 | 150 | 140-200 | |
Polyester PTFE membrane | 400-600 | 1.5-2.1 | 130 | 150 | 140-200 | |
Medium Temperature 120~150℃ | The composite material | 500-800 | 2-2.5 | 150 | 170 | 140-200 |
Acrylic | 500-600 | 2-2.5 | 140 | 160 | 140-200 | |
High Temperature 150~280℃ | PPS | 450-600 | 1.5-2.2 | 170 | 190 | 140-200 |
Aramid | 450-600 | 1.8-2.5 | 204 | 240 | 140-200 | |
PTFE | 600-800 | 1.2-1.5 | 240 | 260 | 50-80 | |
P84 | 500-600 | 2.2-2.4 | 260 | 280 | 140-200 | |
Fiberglass composite | 850-950 | 2.2-2.8 | 260 | 300 | 140-200 | |
Fiberglass membrane woven cloth | 750 | 0.8 | 260 | 280 | 50-80 | |
