Model No: Glass Fiber

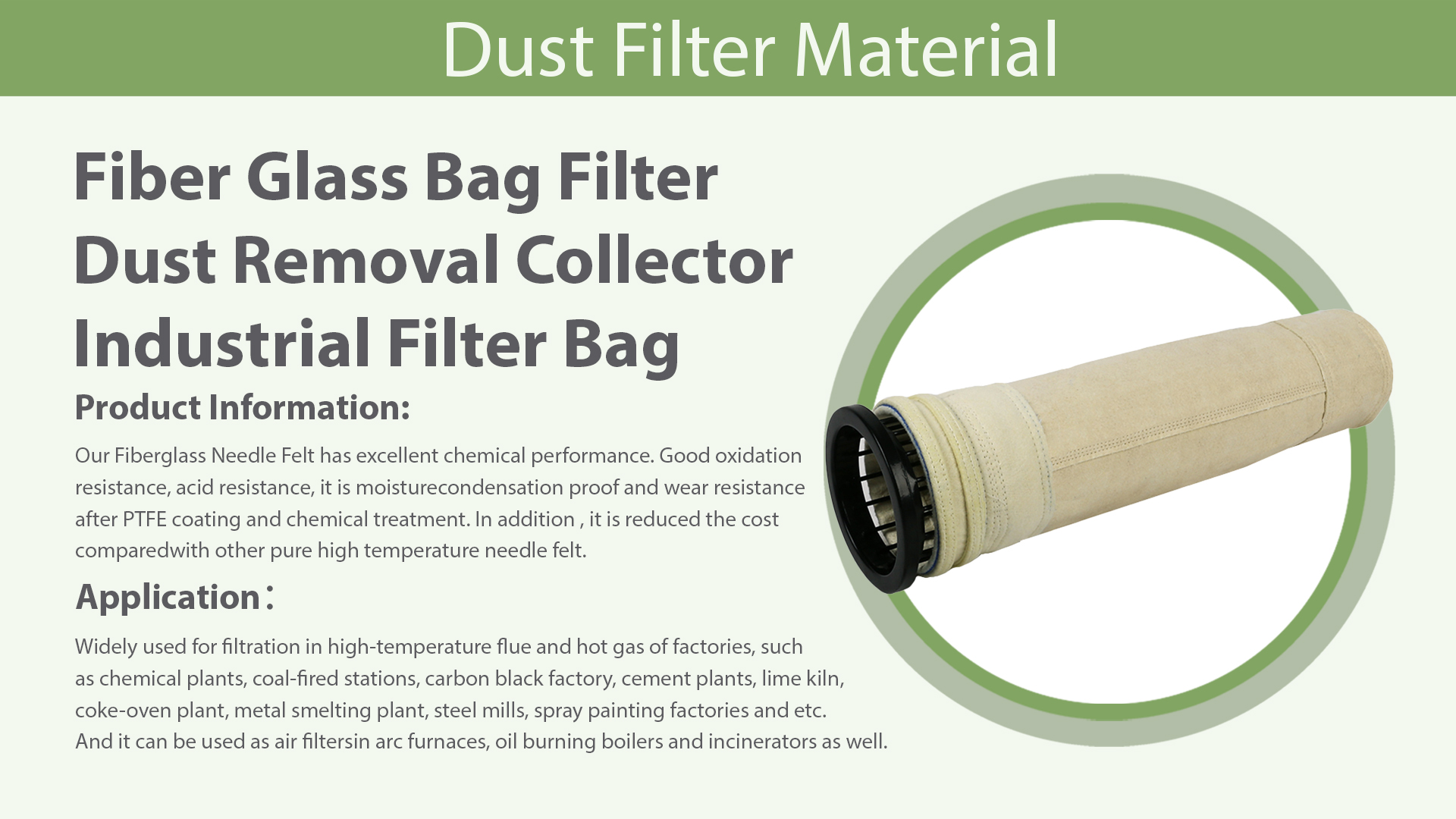

Glass Fiber Compound Needle Felt
Quantity :
Subscribe to our Newsletter
Our Fiberglass Needle Felt has excellent chemical performance. Good oxidation resistance, acid resistance, it is moisture
condensation proof and wear resistance after PTFE coating and chemical treatment. In addition , it is reduced the cost compared
with other pure high temperature needle felt.
condensation proof and wear resistance after PTFE coating and chemical treatment. In addition , it is reduced the cost compared
with other pure high temperature needle felt.
Working Condition | Material | Weight g/m² | Thickness （mm） | Temperature Resistance (°C) | Air permeability （L/dm2*min） | |
Continues | Instant | |||||
Room Temperature 0~120℃ | Polyester | 400-600 | 1.5-2.1 | 130 | 150 | 140-200 |
Polyester anti-static | 400-600 | 1.5-2.1 | 130 | 150 | 140-200 | |
Polyester water & oil proof | 400-600 | 1.5-2.1 | 130 | 150 | 140-200 | |
Polyester PTFE membrane | 400-600 | 1.5-2.1 | 130 | 150 | 140-200 | |
Medium Temperature 120~150℃ | The composite material | 500-800 | 2-2.5 | 150 | 170 | 140-200 |
Acrylic | 500-600 | 2-2.5 | 140 | 160 | 140-200 | |
High Temperature 150~280℃ | PPS | 450-600 | 1.5-2.2 | 170 | 190 | 140-200 |
Aramid | 450-600 | 1.8-2.5 | 204 | 240 | 140-200 | |
PTFE | 600-800 | 1.2-1.5 | 240 | 260 | 50-80 | |
P84 | 500-600 | 2.2-2.4 | 260 | 280 | 140-200 | |
Fiberglass composite | 850-950 | 2.2-2.8 | 260 | 300 | 140-200 | |
Fiberglass membrane woven cloth | 750 | 0.8 | 260 | 280 | 50-80 | |
