What is Micron Nylon Filter Mesh?

What is Micron Nylon Filter Mesh?

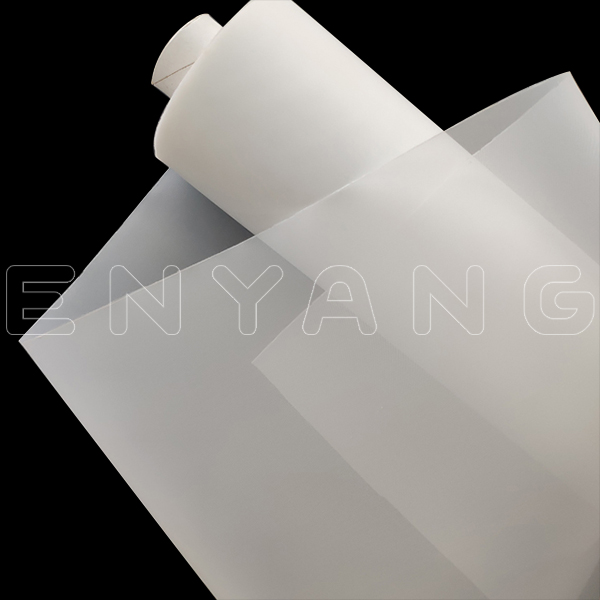

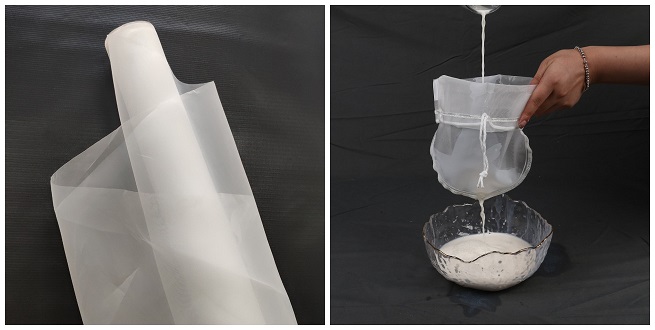

The micron nylon filter mesh is weaving by NYLON6(PA6) or NYLON66 (PA66) monofilament yarn in plain weave or twill weave. The round, smooth, regular, continuous, monofilament yarn and precision weaving process make this Nylon Filter Fabric in uniform, square and fine mesh opening (aperture) and smooth surface. These features ensure it offers minimal flow restriction and surface loading of particles during the filtration process.

What is Nylon Micron Mesh Count:

Mesh count of the Nylon Micron Filter Mesh refers to how many holes in a linear inch, for example, 100 mesh means there are 100 holes per inch, and 200mesh refers to there are 200 holes per inch. So the higher mesh count, the thinner thread yarn, and the smaller aperture and particle through so that the higher filter fineness.

Micron Nylon Filter Mesh Aperture (Mesh Opening) Size:

Mesh opening of Micron Nylon Filter Mesh is the space between the adjacent two yarns, it’s the parameter to show the size of each square hole on the filter fabric. The mesh opening determines the precision of the mesh, which smaller particle than opening will pass through, and bigger will be captured. Its measure unit is mm or um.

Our Micron Nylon Filter Mesh aperture from 5um-1600um, tolerance +/-10%. （1micron=0.001mm, 1000micron=1mm）, thickness from 60um-850 to meet different filtration requirement and application.

For more infomation, you can contact us +86 15097355251
