water filtration bag
Model No: PE Filter Bag 01

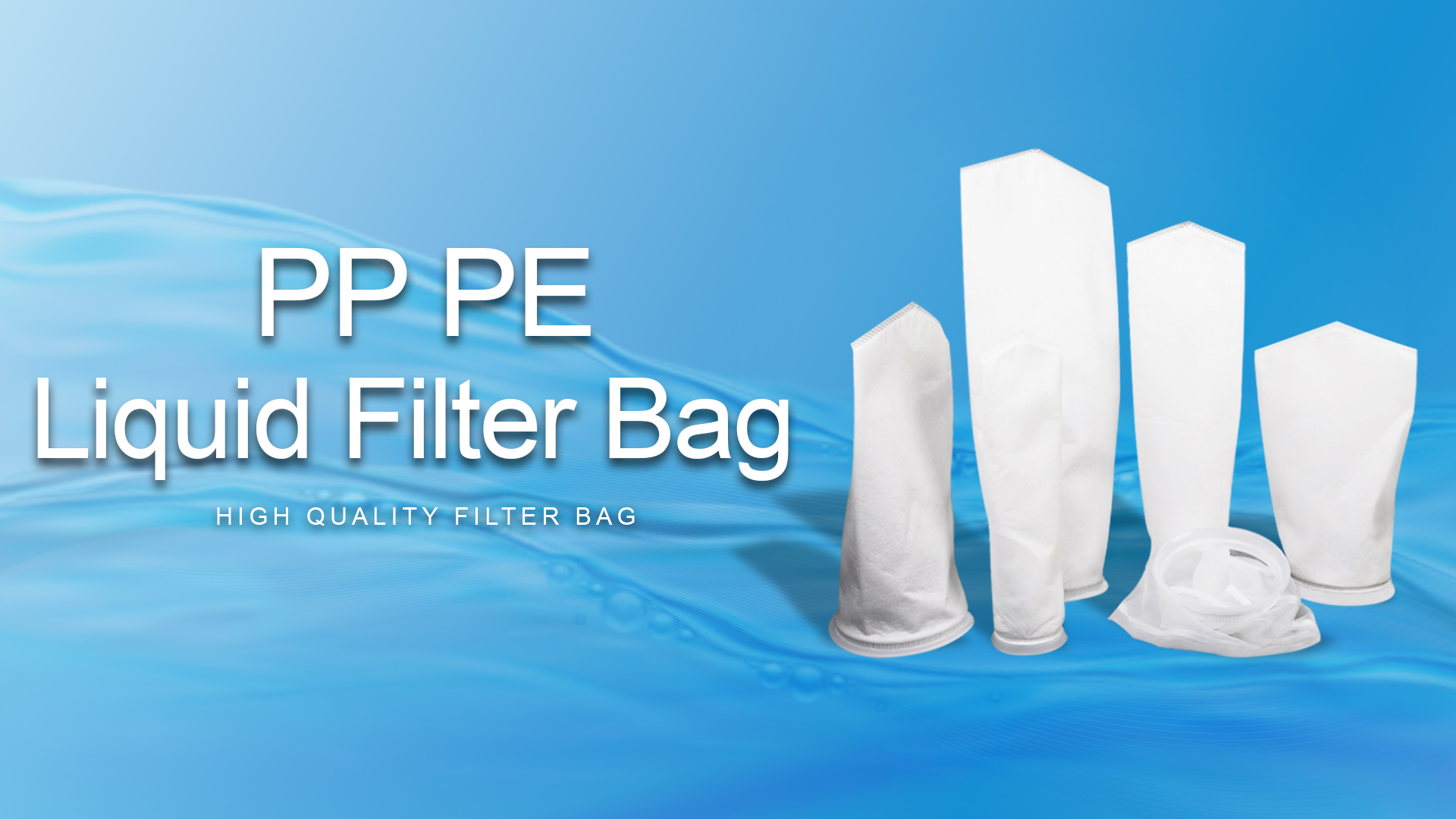

Water filtration bag

The degreasing filter bag is an efficient filter bag with a large filtration area that provides the benefits of fine filtration, long life, low replacement rate and filtration cost in some industrial applications.
Quantity :
add to cart
Contact Now
Product name:  Industrial liquid filtration
The degreasing filter bag is an efficient filter bag with a large filtration area that provides the benefits of fine filtration, long life, low replacement rate and filtration cost in some industrial applications. with very competitive liquid filter price
Liquid filter bags are manufactured in the China, made with the highest grade material to offer you quality and efficiency in each bag.All standard sizes are available with many different top rings to offer you the proper filter bag you need to adapt with your existing housings.  liquid filter price
Product Name
Liquid Filter Bags
Material Available
Nylon (NMO)
Polyester (PE)
Polypropylene (PP)
Maximum Operating Temperature
275-300° F (135-149° C)
275-325° F (135-162° C)
200-220° F (93-104° C)
Micron Rating (um)
25, 50, 100, 150, 200, 300, 400, 500, 600, or 25-2000um
0.5, 1, 3, 5, 10, 25, 50, 75, 100, 125, 150, 200, 250, 300
0.5, 1, 3, 5, 10, 25, 50, 75, 100,125, 150, 200, 250, 300
Size
1 #: 7"x 16"(17.78 cm x 40.64 cm)
2 #: 7"x 32"(17.78 cm x 81.28 cm)
3 #: 4"x 8.25"(10.16 cm x 20.96 cm)
4 #: 4"x 14"(10.16 cm x 35.56 cm)
5 #: 6"x 22"(15.24 cm x 55.88 cm)
Customized size
Filter Bag Area(m²) /
Filter Bag Volume (Liter)
1#: 0.19 m² / 7.9 Liter
2#: 0.41 m² / 17.3 Liter
3#: 0.05 m² / 1.4 Liter
4#: 0.09 m² / 2.5 Liter
5#: 0.22 m² / 8.1 Liter
Collar Ring
Polypropylene ring/Polyester ring/Galvanized steel ring/
Stainless steel ring/Rope
Remarks
OEM: support
Customized item: support.

if you want to know more about water filtration bag, please contact at +86 15097355251
