nylon filter bag
Model No: Nylon Filter Bag

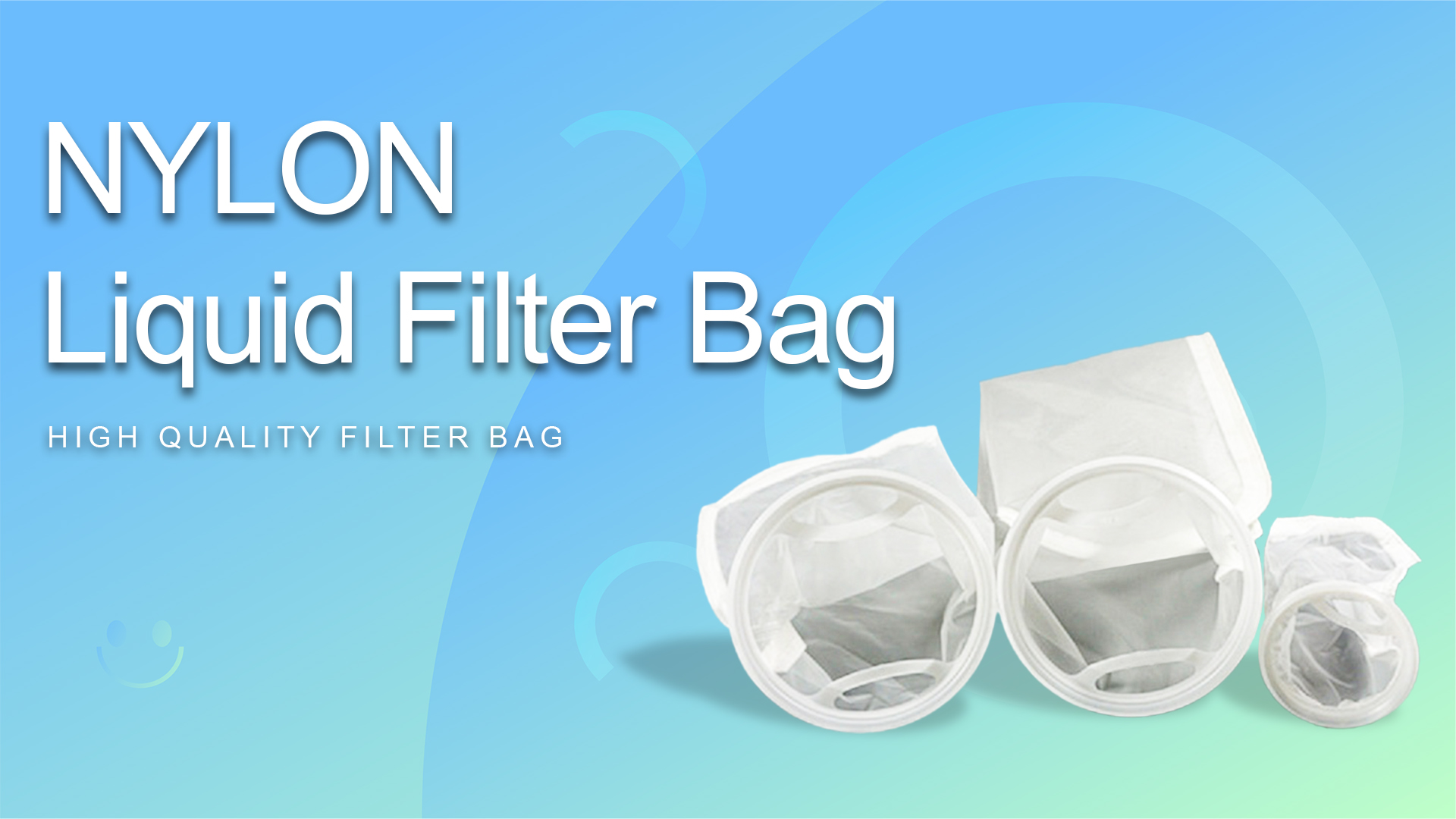

Nylon Filter Bag

Nylon filter bags are made with the highest grade material to offer you quality and efficiency in each bag.All standard sizes are available with many different top rings to offer you the proper filter bag you need to adapt with your existing housings.
Quantity :
add to cart
Contact Now
Nylon filter bags are made with the highest grade material to offer you quality and efficiency in each bag.All standard sizes are available with many different top rings to offer you the proper filter bag you need to adapt with your existing housings.
Product Name
Liquid Filter Bags
Material Available
Nylon (NMO)
Polyester (PE)
Polypropylene (PP)
Maximum Operating Temperature
275-300° F (135-149° C)
275-325° F (135-162° C)
200-220° F (93-104° C)
Micron Rating (um)
5, 15, 25, 50, 100, 150, 200, 300, 400, 500, 600, or 5- 2000um
0.2, 0.5, 1, 3, 5, 10, 25, 50, 75, 100, 125, 150, 200, 250, 300
0.2, 0.5, 1, 3, 5, 10, 25, 50, 75, 100,125, 150, 200, 250, 300
Size
1 #: 7"x 16"(17.78 cm x 40.64 cm)
2 #: 7"x 32"(17.78 cm x 81.28 cm)
3 #: 4"x 8.25"(10.16 cm x 20.96 cm)
4 #: 4"x 14"(10.16 cm x 35.56 cm)
5 #: 6"x 22"(15.24 cm x 55.88 cm)
Customized size
Filter Bag Area(m²) /
Filter Bag Volume (Liter)
1#: 0.19 m² / 7.9 Liter
2#: 0.41 m² / 17.3 Liter
3#: 0.05 m² / 1.4 Liter
4#: 0.09 m² / 2.5 Liter
5#: 0.22 m² / 8.1 Liter
Collar Ring
Polypropylene ring/Polyester ring/Galvanized steel ring/
Stainless steel ring/Rope
Remarks
OEM: support
Customized item: support
